OX4MB
4m BEACON ON AIR
See beacon place with
Google Eath ..GP47
Hear audio from test in
OZ
Hear Audio
from OH1ZAA 05-06-2009
| CALL |
OX4MB |
| FREQ |
70012.0 MHz |
| WWL |
GP47TA |
| LOCATION |
Sønderstrøm fjord "Airport" |
| HEIGHT |
300 Meter A.S.L |
| POWER |
25W Output |
| ANTENNA |
5elm 85 deg |
| |
|
|
Keyer |
FSK
400Hz OZ2M PIC16 keyer |
|
|
|
|

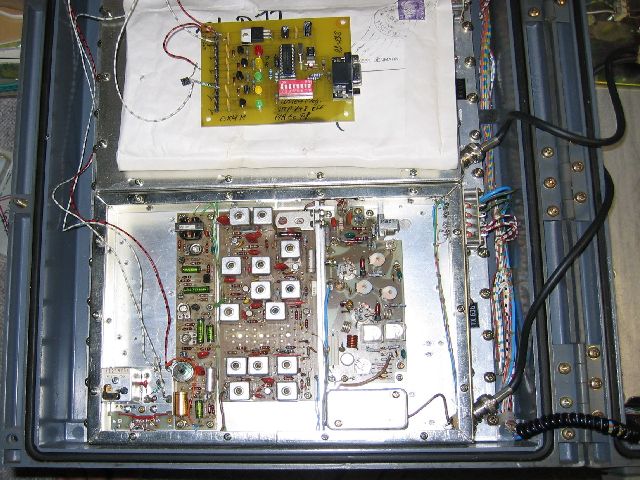

OX4MB old Storno CQF
OZ2M keyer and 4m TX |
|
|
|

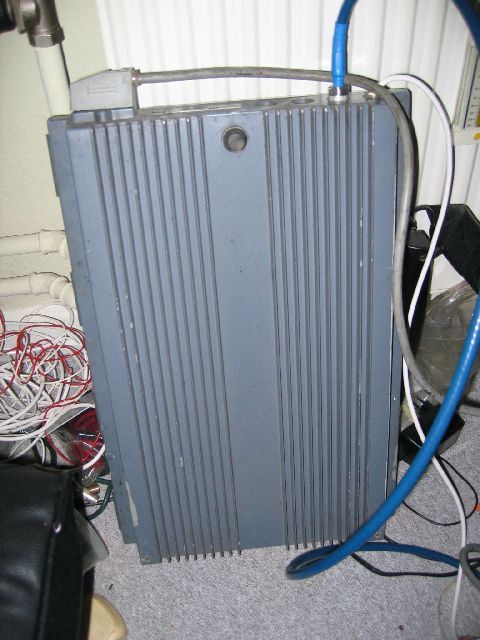

Cabinet unit under test in OZ as OZ/OX4MB
|
|
|
|
Bcn Ant. making
OX3HI-Holger cut a old 65Mhz ant for 70.012Mhz |
|
|
|

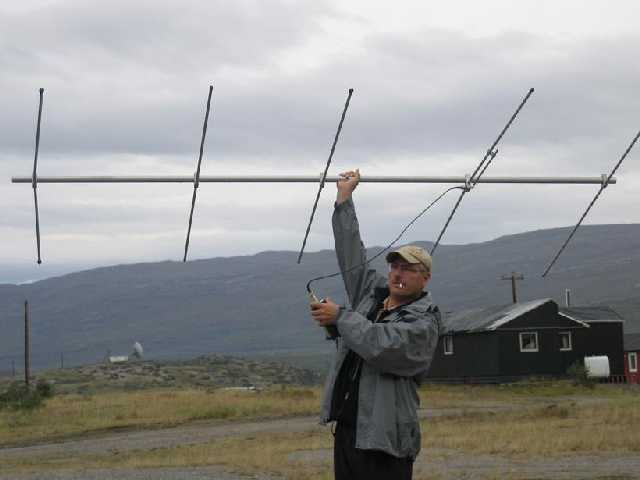

Bcn ant. Test
OX3LX-Bo checking ant with a MFJ |
|
|
|

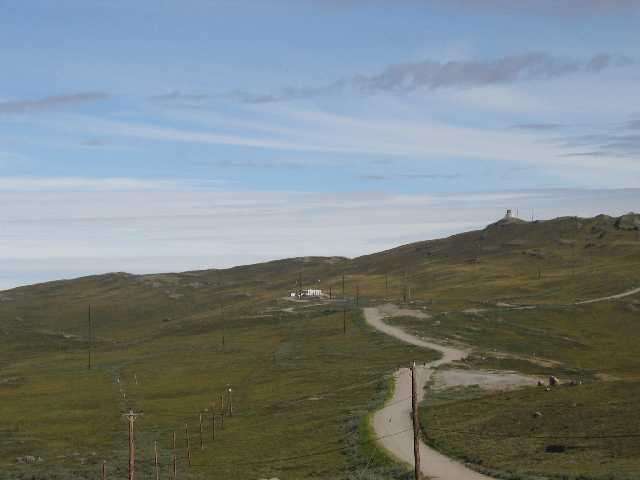

Road to radar and home for OX4MB 70.012 Mhz
you see radar and qth for OX4MB on the right corner of pics |
|
|
|
|
|

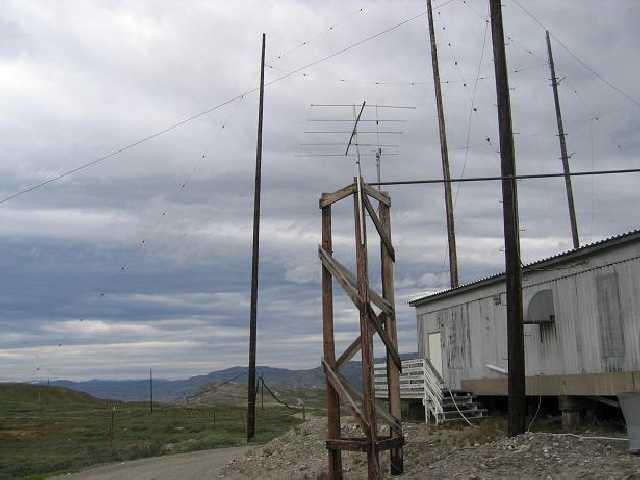

OX4MB tower
|
|
|
|

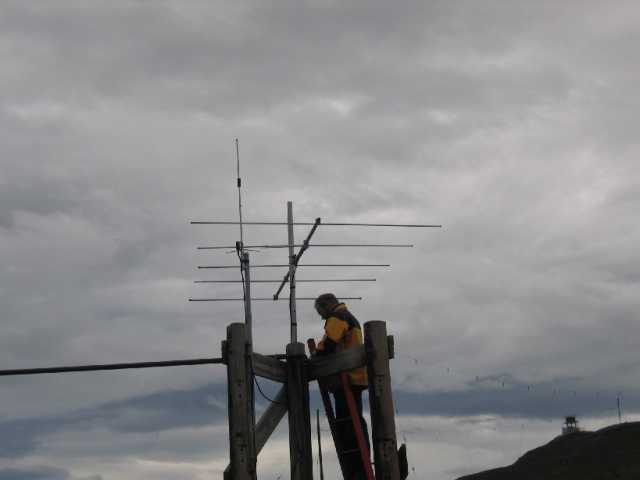

OX4MB ant in tower
OX3HI_Holger is doing the hard work while we hold the ladder |
|
|
|
OX4MB inside site (Storno CQF)

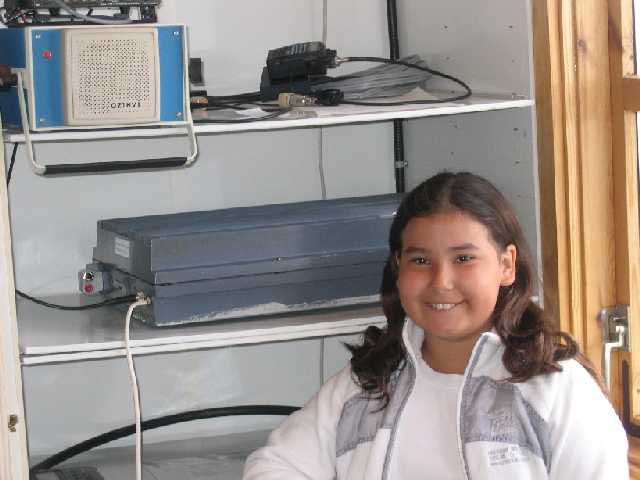

OX3LX's Daughter Nina switch beacon ON |
|
|
|

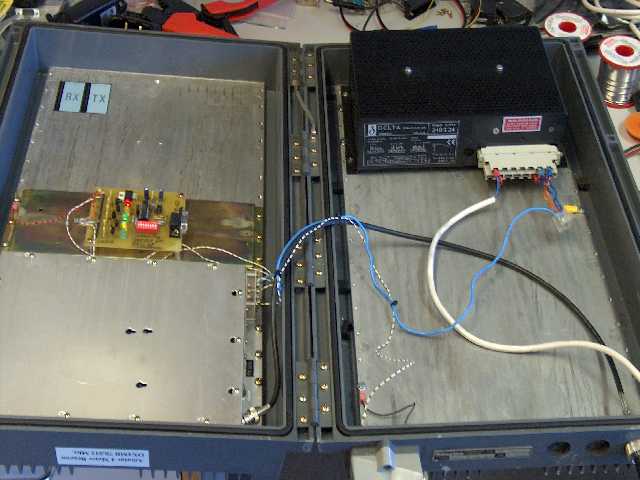

New PS
The OLD PS was change to a new PS during winter 2006 |
|
|
OX3SIX
6m BEACON ON AIR
QRV and running from new QTH in 2011,
Hear audio on UKSMG
| CALL |
OX3SIX |
| FREQ |
50012.0 MHz |
| WWL |
HP15EO |
| LOCATION |
Tasiilaq City |
| HEIGHT |
1200 Meter A.S.L |
| POWER |
100W Output |
| ANTENNA |
DIPOLE |
| MORSE CODE |
OX3SIX HP15EO TONE 3Sek.
"State Letter " TONE 3Sek. |
| STATE
"LETTER" |
O
or S
or L
or T |
| O |
Beacon is "OK" all system is GREEN |
| S |
High "SWR" Power is Degrade to
<25W |
| L |
"LOW" Output Power is <40W |
| T |
High "TEMP" During High TEMP.
Beacon Power is <25W. |

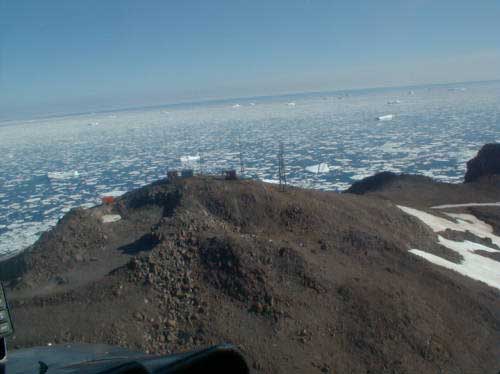

Home of OX3SIX on Top of the World,
"QTF Europe"

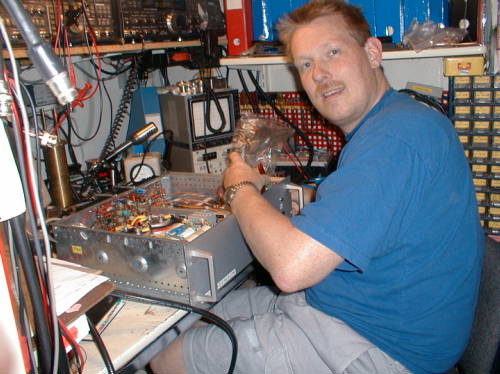

OX3LG
Beacon builder
|
OX3SIX
Front-View
|
OX3SIX
Top-View
|

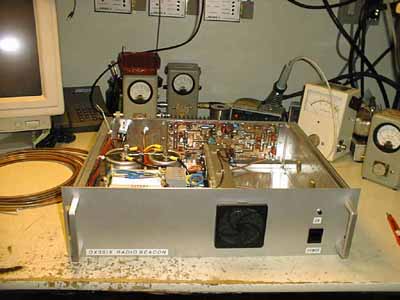

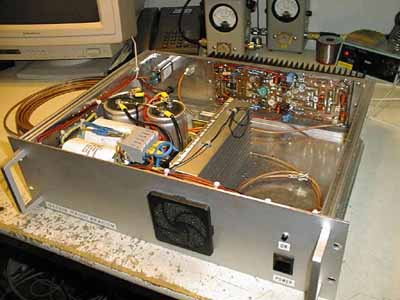

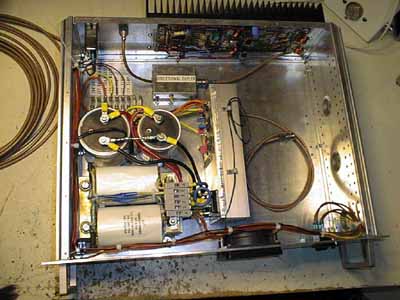

OX3SIX
inside
|
|
t

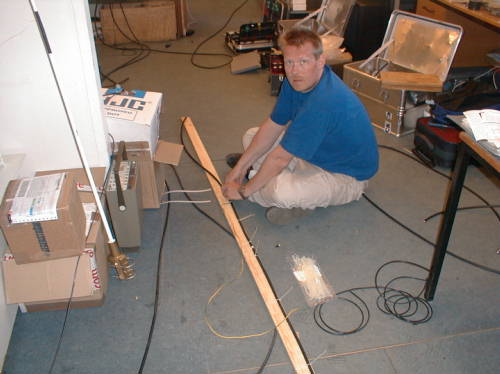

OX3LG
Construct Dipole
|
OX3UB
Making Coax
|
Test of OX3SIX
Antenna
|
Ready to go
to OX3SIX home
|
Home of
OX3SIX
|

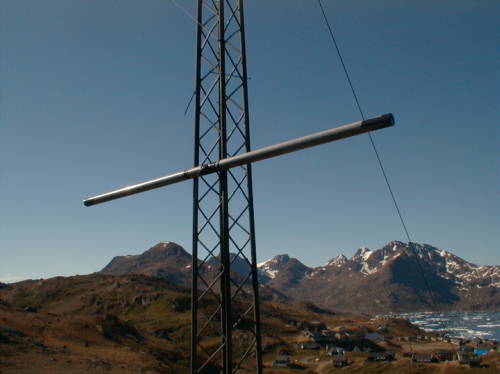

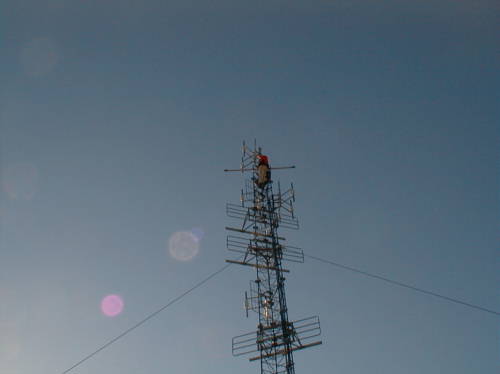

OX3UB
Install Antenna
|

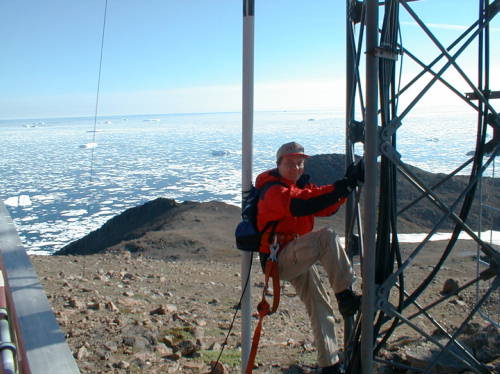

OX3UB
on tower
|

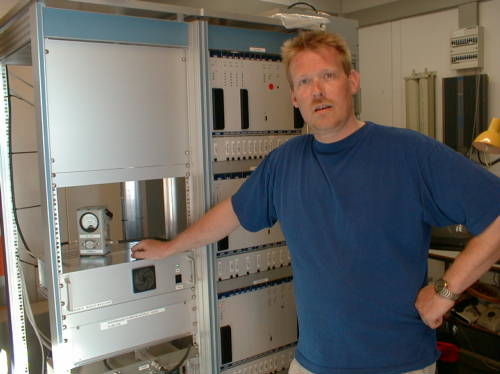

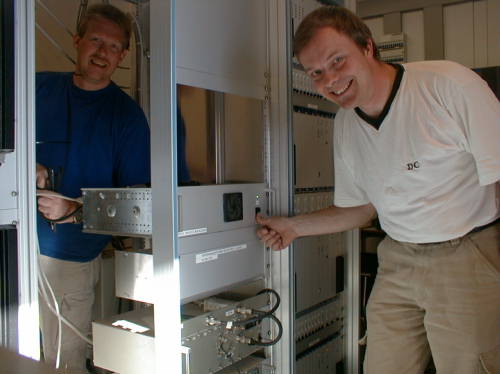

OX3LG

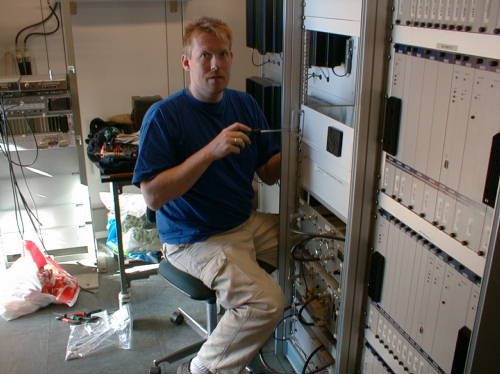

Install OX3SIX
|
Checking
Power/SWR
|
..321-Fire
We have OX3SIX on air
|
AFTER 1 WEEK ON AIR ON DX-CLUSTER
DX-SUMMIT
History Spot Database results (updated 07 Jul
1999):
OZ1DJJ 50012.0 OX3SIX/B New bcn Now QRV HP15/100W 2118 24 Jun 1999
GD0TEP 50012.0 OX3SIX 559 2257 02 Jul 1999
G0JHC 50012.0 OX3SIX HP15eo new bcn? 2259 02 Jul 1999
OZ1LEP 50011.4 OX3SIX/B 559 in jo46et 2303 02 Jul 1999
SM6CMU 50011.8 OX3SIX/B HP15 529 IN JO57 2304 02 Jul 1999
G4FVP 50012.0 OX3SIX 579 in IO94 2305 02 Jul 1999
DJ3LE 50012.0 OX3SIX/B 539 now also here HP15>JO44 2308 02 Jul 1999
OZ3K 50012.0 OX3SIX 55 2310 02 Jul 1999
G0JHC 50012.3 OX3SIX STILL +20dB >IO83 2327 02 Jul 1999
G8GXP 50012.0 OX3SIX still 599+ in io93..pipeline t2349 02 Jul 1999
GB7ADX 50010.0 OX3SIX/B 599+++ in IO73!! 2359 02 Jul 1999
PA0OOS 50012.0 OX3SIX back agn vy weak 0005 03 Jul 1999
G4FVP 50011.4 OX3SIX still 559 in IO94 0038 03 Jul 1999
GI0KOW 50012.0 OX3SIX 579 >io64 0038 03 Jul 1999
GD0TEP 50012.0 OX3SIX Still there, if only....... 0048 03 Jul 1999
GB7ADX 50012.0 OX3SIX/B HP15 Sleepyland beacon! 0051 03 Jul 1999
SM3UZS 50012.0 OX3SIX HP15-JP92 also la7six 599 1803 03 Jul 1999
G0WAZ 50012.0 OX3SIX All OX 6m ops on holiday in OZ1807 03 Jul 1999
SP2NJE 50012.0 OX3SIX/B 559 in jo92 1811 03 Jul 1999
OH6KTL 50012.0 OX3SIX kp02 ( 579 >hp15 1813 03 Jul 1999
OH1XT 50012.0 OX3SIX/B HP15EO,579 in kp01 1829 03 Jul 1999
G0JHC 50012.5 OX3SIX 529 tonight >IO83 2100 03 Jul 1999
GI0OTC 50012.0 OX3SIX > IO65 579 2134 03 Jul 1999
G0JHC 50012.0 OX3SIX now 599+ HP15 to IO83 2302 03 Jul 1999
SM6CMU 50011.8 OX3SIX/B HP15 529 IN JO57 2304 03 Jul 1999
G4FVP 50012.0 OX3SIX 579 in IO94 2305 03 Jul 1999
DJ3LE 50012.0 OX3SIX/B 539 now also here HP15>JO44 2308 03 Jul 1999
OZ3K 50012.0 OX3SIX 55 2310 03 Jul 1999
K1TOL 50012.0 OX3SIX/B hp16>fn44 s9++EUR?? 1752 06 Jul 1999

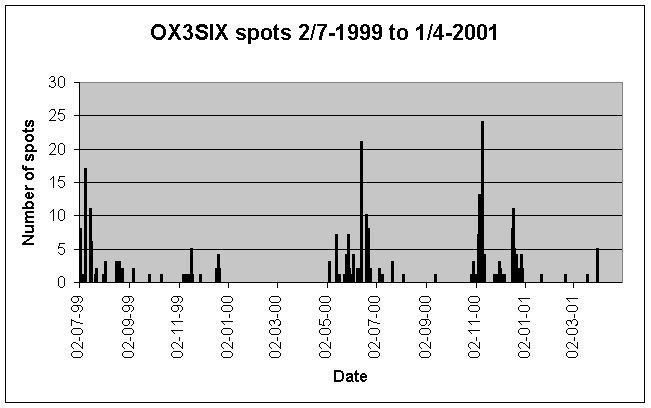

OX3SIX SPOT ON INTERNET DX-CLUSTER
OX3VHF 6m+2m
beacon
http://www.youtube.com/watch?v=ciWl_nIVed0
http://www.youtube.com/watch?v=PBT-j0oG_Mc
| CALL |
OX3VHF 2m plan in July 2009
hear audio from test |
| FREQ |
144.418Mhz MHz |
| WWL |
GP80KB |
| LOCATION |
Weather station Prince Christians Sund South Greenland |
| HEIGHT |
50 Meter A.S.L |
| POWER |
40W Output |
| ANTENNA |
7elm QTF 90 deg |
| MORSE CODE |
35 time E DE OX3VHF
OX3VHF GP80 OX3VHF. |
| CALL |
OX3VHF 6m
Link to Audio |
| FREQ |
50045.0 MHz |
| WWL |
GP80KB |
| LOCATION |
Weather station Prince Christians Sund South Greenland |
| HEIGHT |
50 Meter A.S.L |
| POWER |
20W Output |
| ANTENNA |
Vertical DIPOLE |
| MORSE CODE |
OX3VHF GP60XR TONE 5Sek..
Keyer still use old loc. |

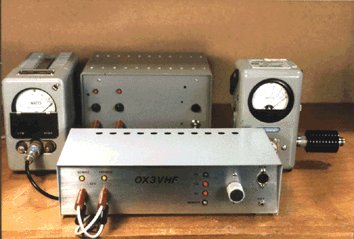

The beacon was build in 1984 at OZ2OE-Ole
and is a combined 50 MHz and 144 MHz transmitter with a common keyer unit. It
has output's of 20W and 10W on the two bands.
In addition to the beacon mode the 144 MHz transmitter can be manually keyed -
CW - on a x-tal controlled frequency (144.269 MHz) outside the beacon band. This
was done for the - unlikely - case of "the opening of the century".
Originally the beacon was placed on the northeast coast of Greenland in IQ06,
but was later moved to Qaqortoq on the southwest coast in GP60XR. It's still
operational on 50 MHz, but the 2 meter beacon is QRT.
OLD QTH GP60XR BEFORE 2005
 |
 |
 |
| OX3VHF |

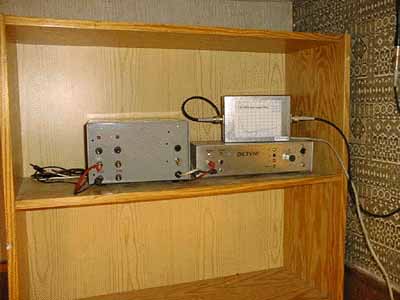

OX3VHF
inside
|

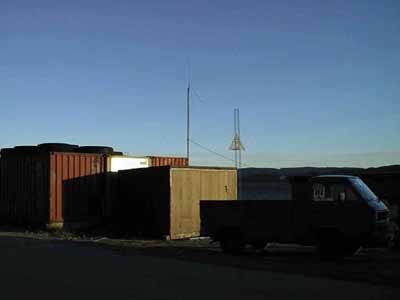

OX3VHF
Outside
|
NEW QTH AFTER 2006 IN GP80
See QTH at GOOGLE EARTH
|
|
|
|

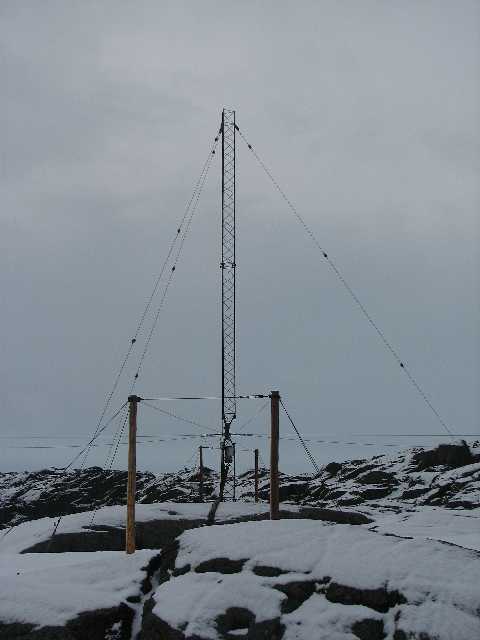

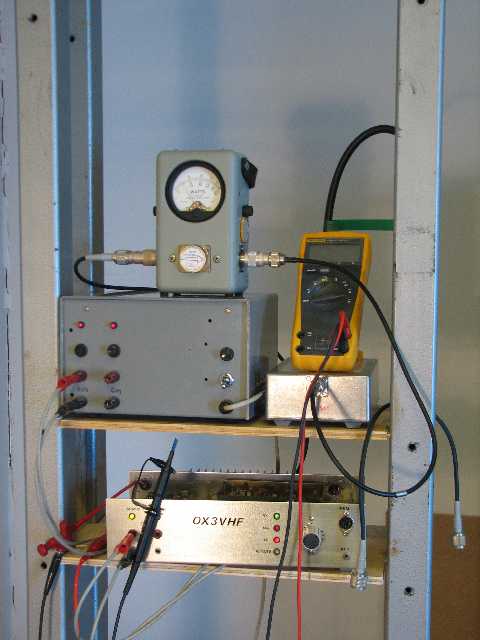

OX3VHF at new QTH
|
|
|
|
8m Vertical tower is used for ant with macthing network
A dipole was install in 2008 |
|
|

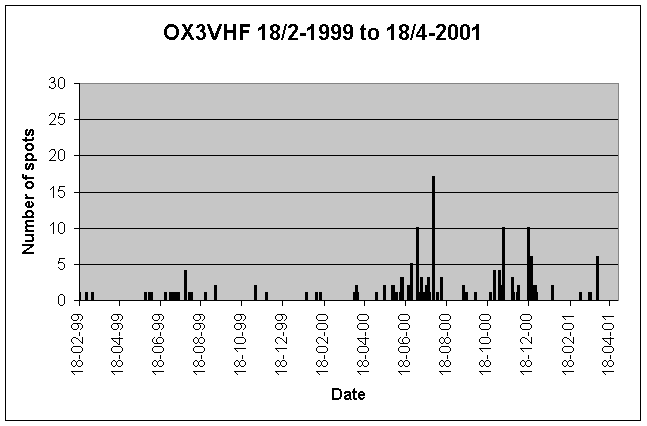

OX3VHF SPOT ON INTERNET DX-CLUSTER
